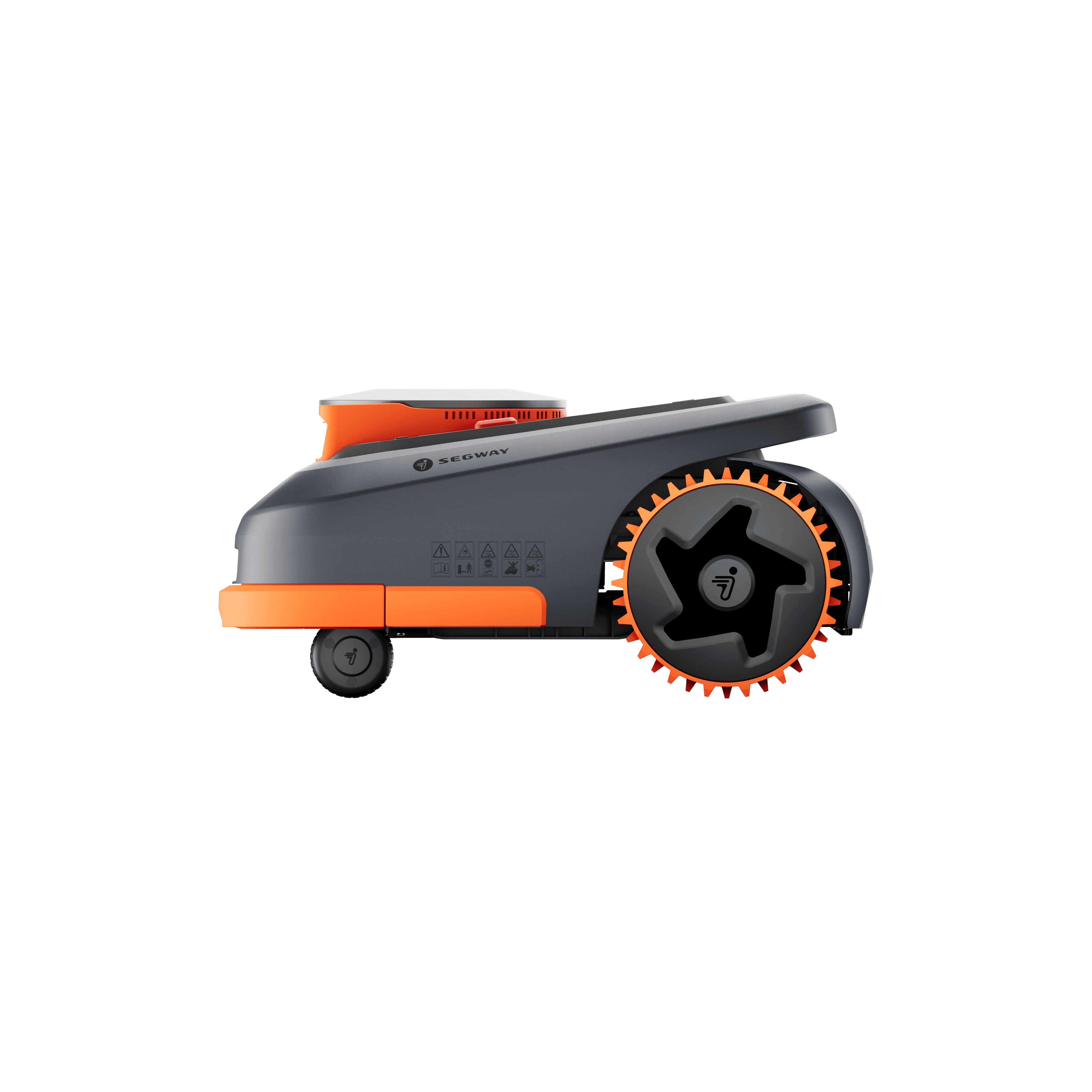

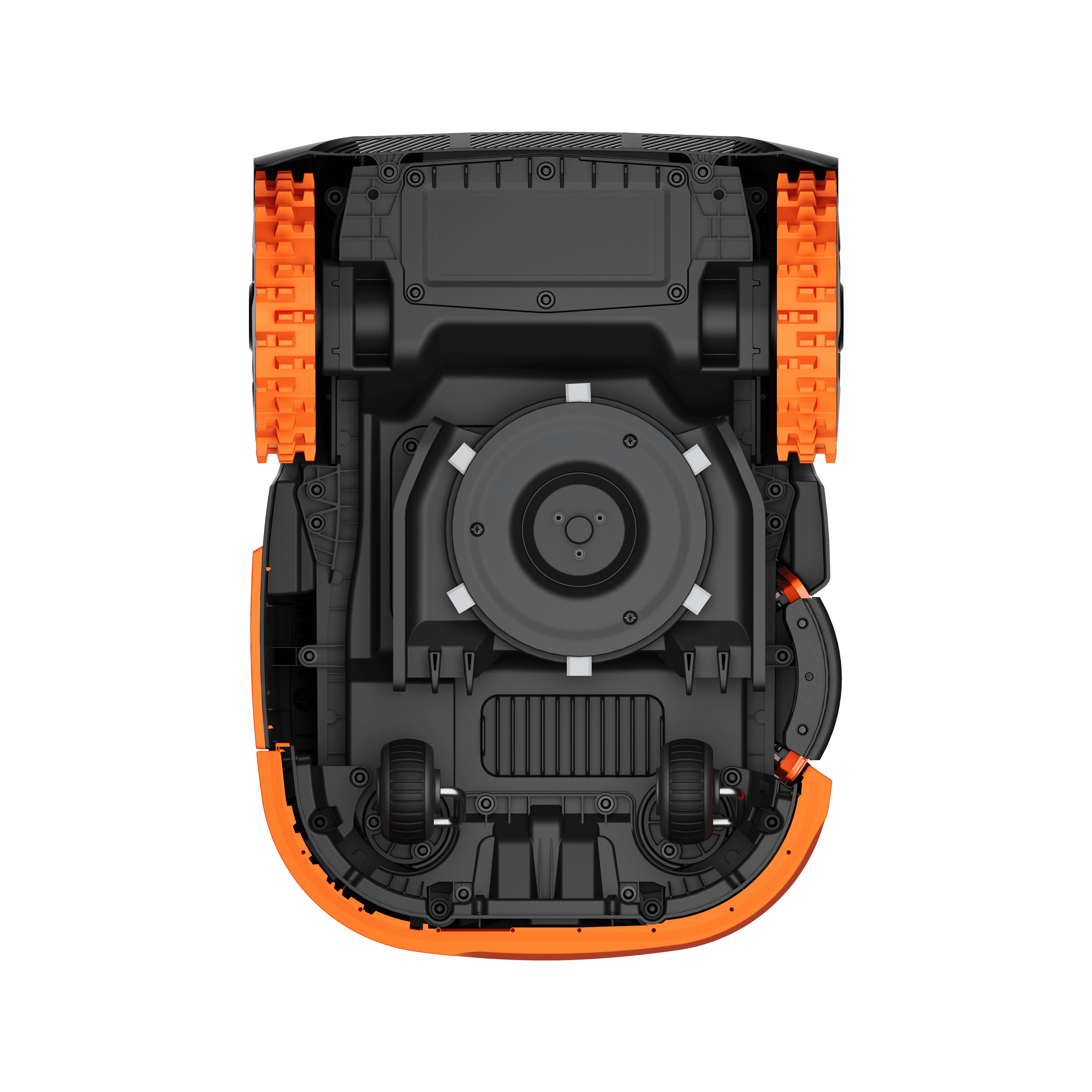

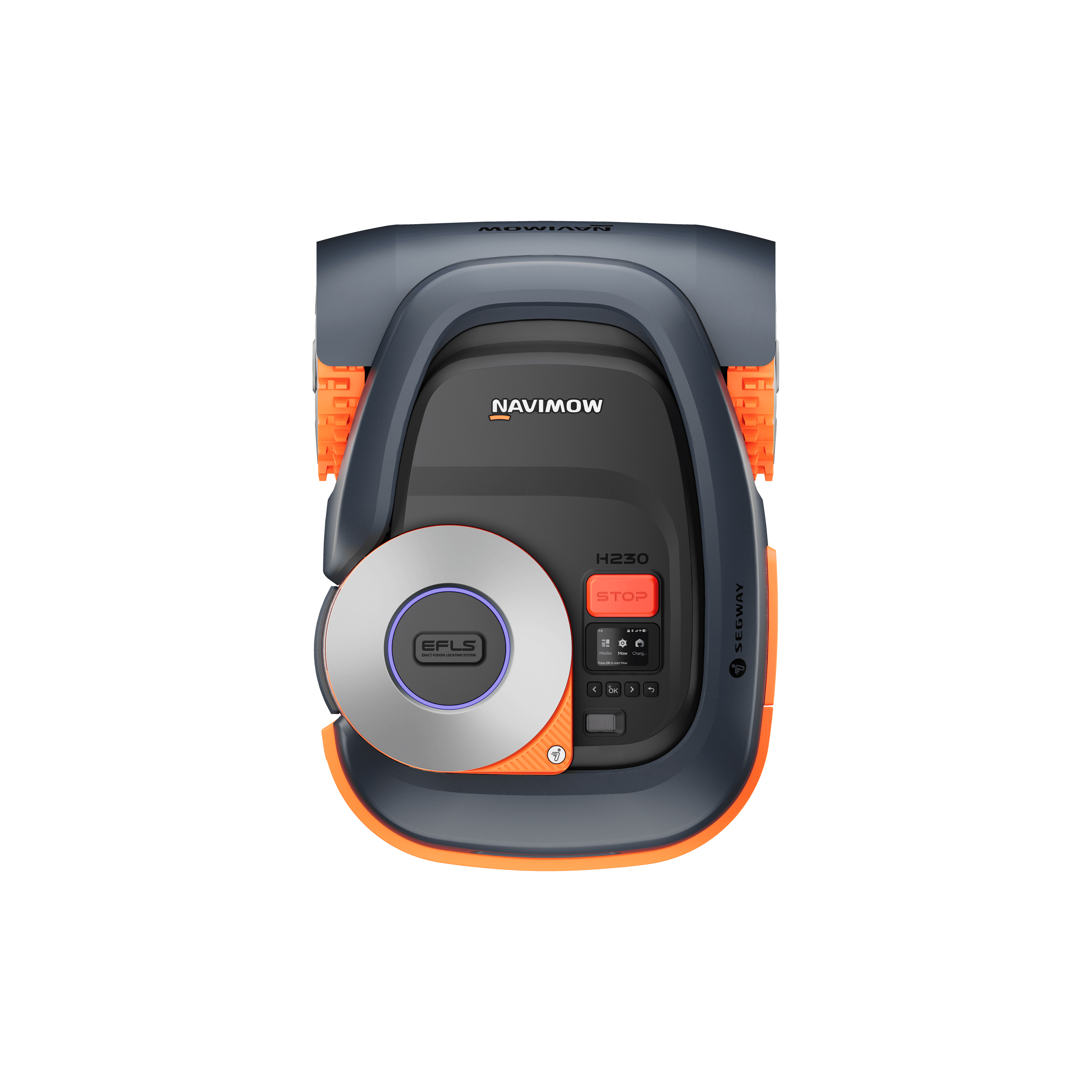

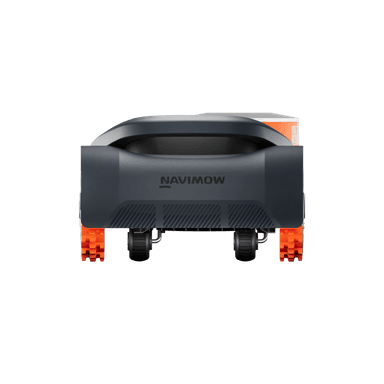

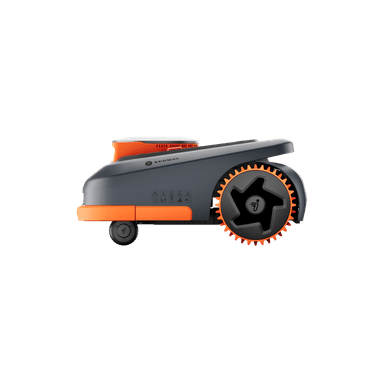

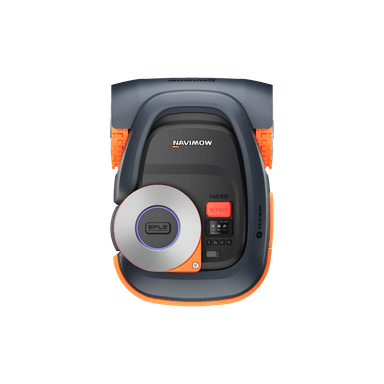

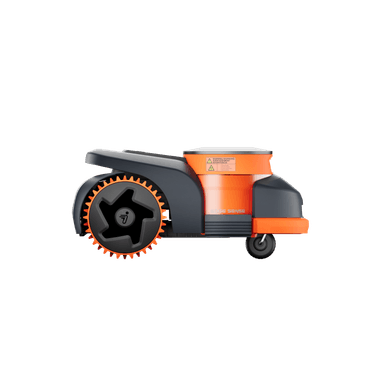

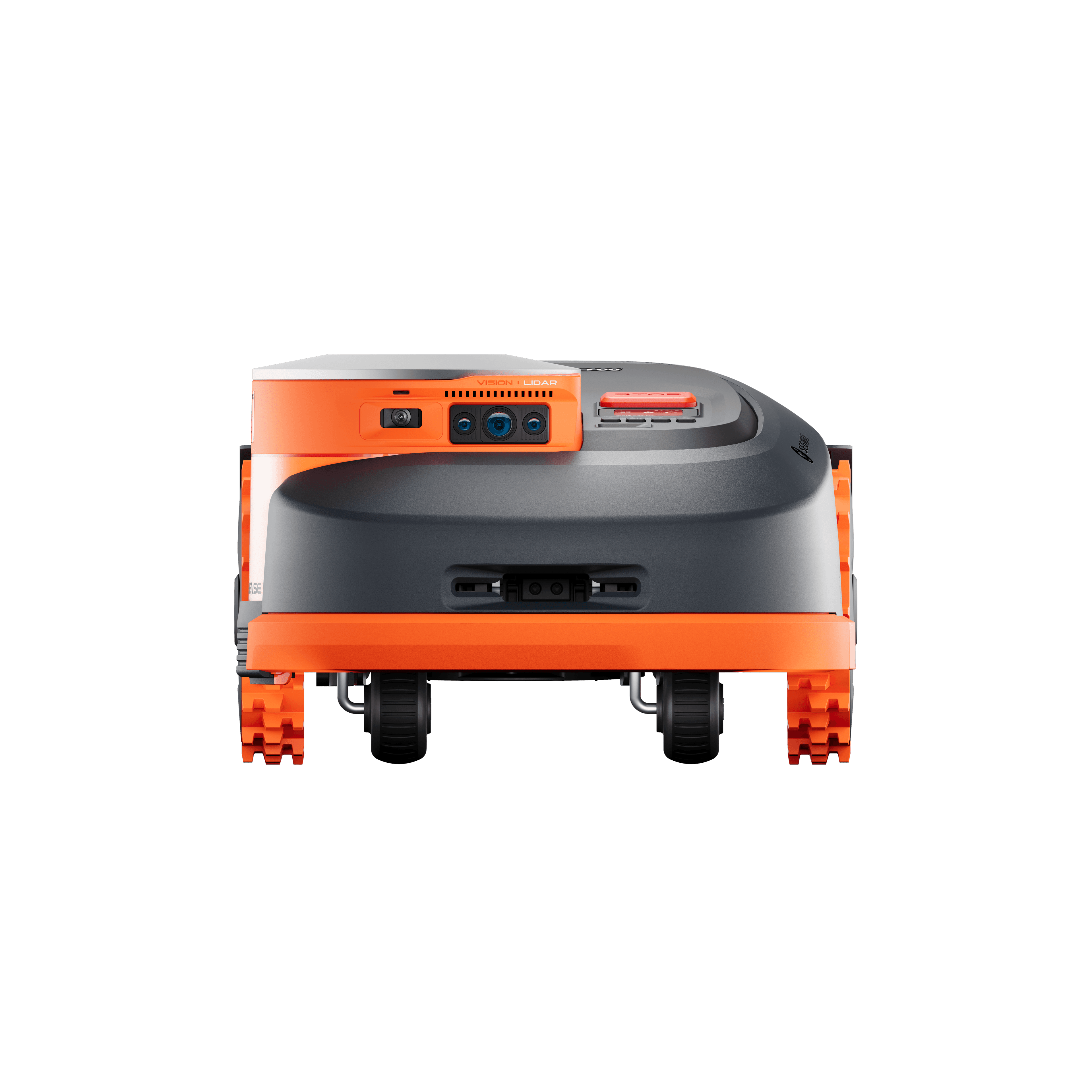

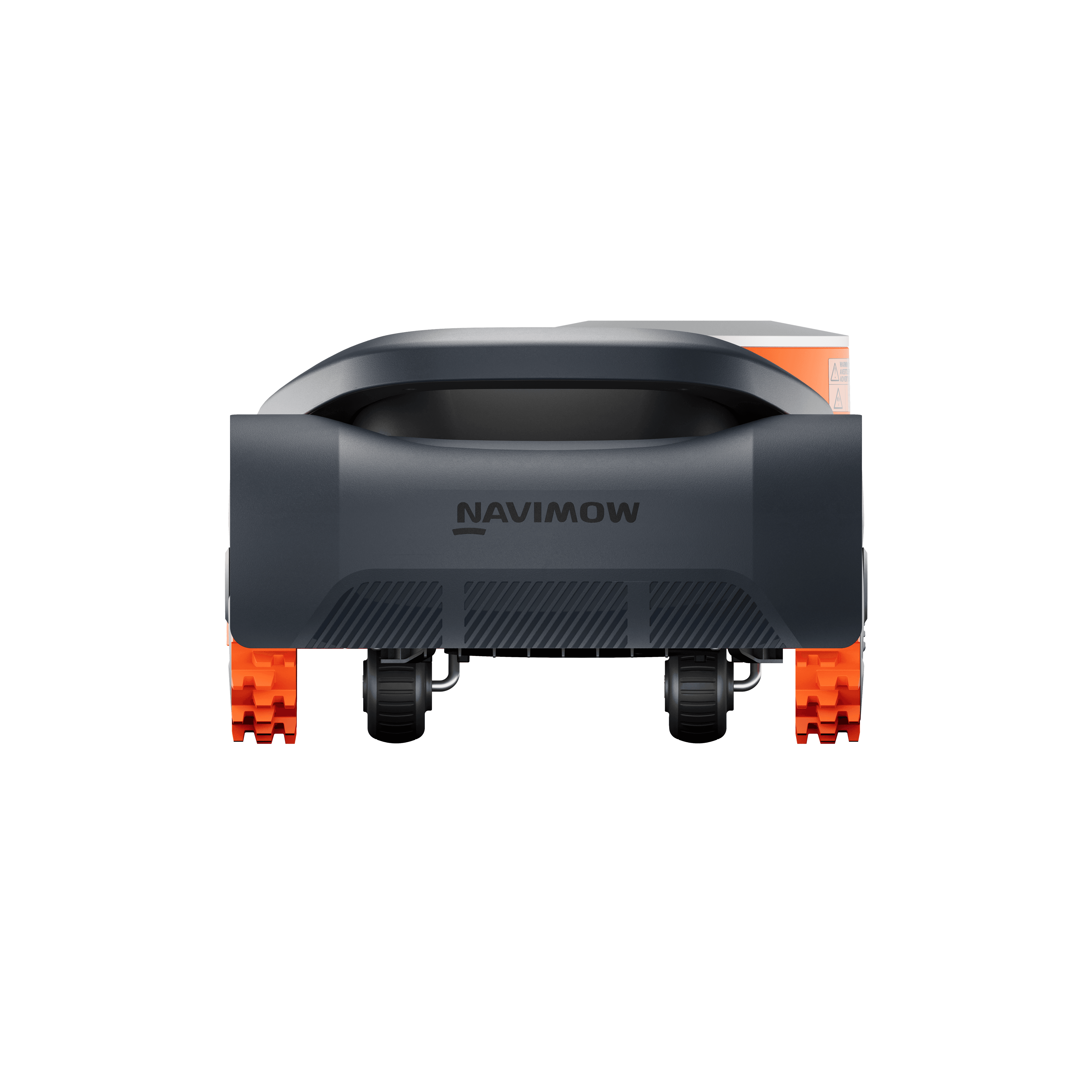

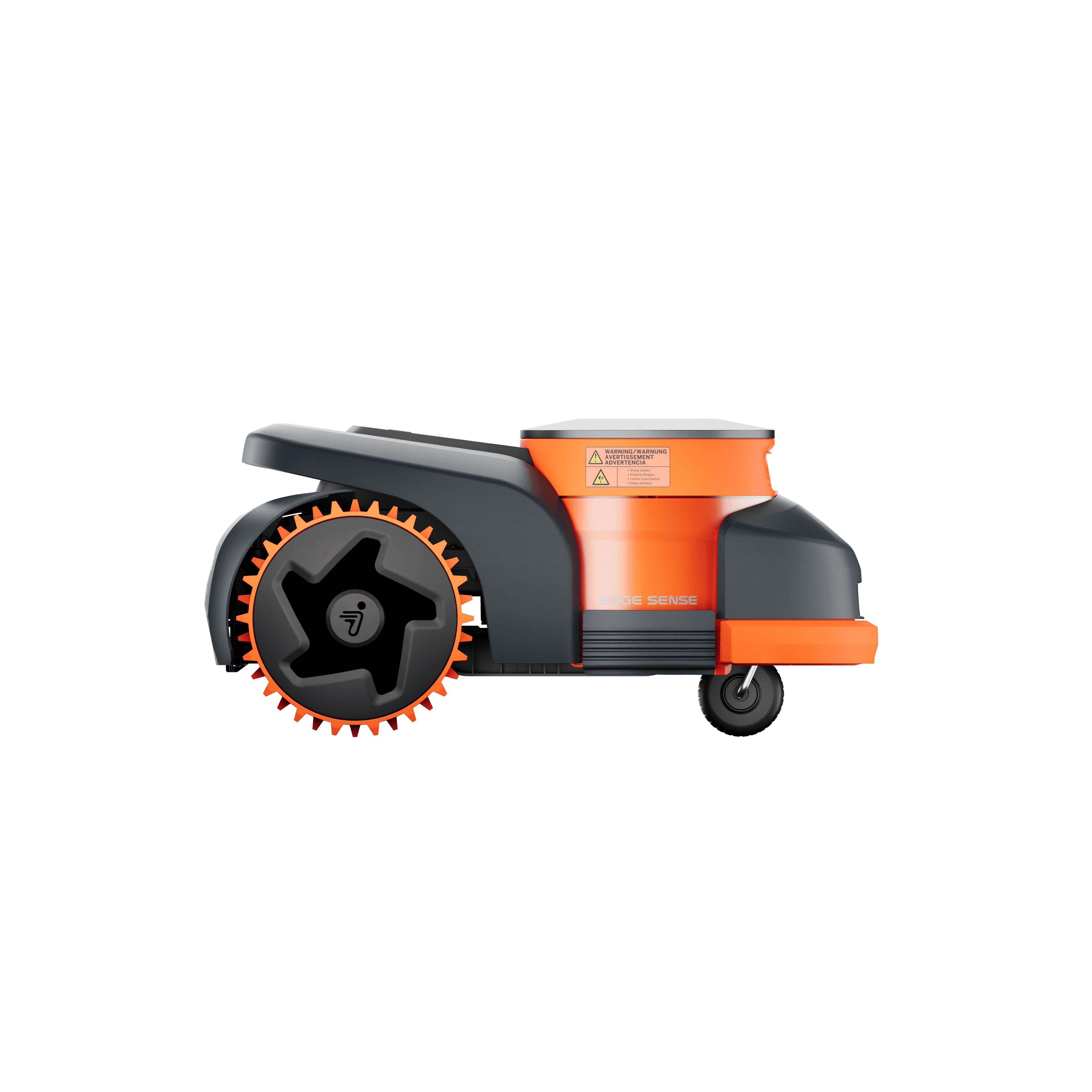

Navimow H230E - 3,000m² Wire-Free AI LiDAR+ Navigation

Traditional RTK (Real-Time Kinematic) is a high-precision GPS positioning technology. It requires the mower to be equipped with a high-precision GPS antenna that supports RTK. The mower receives GPS signals, while an additional GNSS antenna (also a high-precision GPS antenna) is installed in the garden.

The GNSS antenna receives the GPS signals and transmits the data wirelessly to the mower. By combining the GPS data received from both antennas, the mower can achieve centimeter-level positioning accuracy.

The Network RTK used in the H2 series works on the same principle, but with one key difference — instead of requiring users to install their own GNSS antenna, the supplier has already set up a network of base antennas in cities. These antennas receive GPS signals and send the correction data to the mower via the 4G network. While Network RTK enhances accuracy in open areas, the H2 still uses LiDAR as its primary positioning method and does not rely on it.

Just like traditional RTK, the mower still needs to combine the GPS data received by its onboard antenna with the correction data sent through the 4G network to achieve high-precision positioning.

The H2 series offers multiple models suitable for different lawn sizes. The maximum supported mowing area of each model depends on hardware factors such as motor speed, battery capacity, and charging time.

For user convenience, the maximum supported mowing area of each model is not absolutely strict — we allow a slight margin beyond the specified limit.

Auto Mapping uses both LiDAR and cameras to automatically create a precise boundary map for your lawn. This feature allows the mower to explore and detect the outer edges without manual remote control, making setup faster and more convenient.

To begin, tap “Create Map” on the home page, then follow the on-screen instructions in the app to guide the mower into the lawn area and mark it step by step. Once all the zones have been marked, the mower will then begin identifying the outer boundary and gradually generating the map. As it moves along the perimeter, you will see the map expand in real time until it eventually forms a closed loop.

Thanks to the fusion of LiDAR, vision-based boundary recognition, and NRTK technologies, the mower does not need to follow the exact lawn edge during mapping — yet the resulting boundary is as accurate as manual mapping.

During mapping, the mower travels approximately 30–50 cm inside the boundary line. However, when mowing, it will cut right along the boundary edge.

Once Auto Mapping is complete, the mower will automatically return to the charging station. You can then start mowing immediately.

Auto Mapping Usage Notes：

1. The mower can automatically map only the lawn areas it can drive to by itself from the charging station. If a lawn section is isolated—such as a separate backyard area or a lawn on a higher level—it cannot be mapped automatically. These sections must be created as Isolated Zones, and after Auto Mapping is complete, the mower needs to be manually carried to these areas and go to Home > Settings > Map Management > Add More > Boundary to create the map manually with the mower.

2. The lawn has closed boundaries, such as fences or clearly defined edges.

3. The lawn edges are clearly visible and well-defined.

4. There are no drop hazards (e.g., cliffs, steep slopes) near the edges.

5. There are no sharp slopes along the edges.

6. Auto Mapping is only supported during daytime and performs best under daylight conditions. For mapping at night or in low-light conditions, please use manual mapping instead.

Good winter storage for your Navimow H2 guarantees a superb mechanical and performance state in spring and is beneficial in maintaining the battery life. Here are the procedures and tips for winter storage to prepare your Navimow H2 for the coming winter.

1. Preparation before winter storage

1.1 Disable all mowing schedulesOpen the Navimow app and go to Home > Settings > Mowing Schedule to disable mowing schedules.

2. Hibernate Your Mower

To save energy and preserve the battery, it is recommended to put your mower into hibernation before winter storage.

2.1 Make sure the mower’s battery is charged to at least 85%.

2.2 Tap “Begin hibernating” in the app to power off. Hibernation consumes less energy than a standard shutdown.

Note: To wake the mower from hibernation, charge it first before powering it on.

Tip: If hibernation mode is not enabled, the mower needs to be recharged once every three months.

3. Removal of the charging station

3.1 Disconnect the charging station from the power, and then power off the Navimow H2 by pressing and holding the OK button for three seconds.

3.2 We recommend that you mark the position of the charging station before removing it. Specific steps are as follows:

a) Use an Allen wrench to remove the four screws that fasten the charging station.

b) Mark the position by inserting the orange silicone pegs provided or other similar objects into the original holes.

4. Winter storage

4.1 Before storing your Navimow H2, clean its whole outer shell with a wet towel or soft brush. Also, clean the mowing mechanism.

NOTE: Please wear protective gloves before cleaning the mowing mechanism to avoid being cut by the blades.

4.2 Pack the Navimow H2, charging station, power cable, and other accessories in their original packaging and store them in a dry, frost-free place at a temperature between 5 °C and 45 °C.

1. Unpack the garage from the box.

2. Check and make sure no parts are missing.

3. Secure the garage base with 4 bolts.

4. Secure the cover with 2 fasteners.

5. Lay the cables down and organize them.

6. Secure the garage to the ground by using 8 screws.

7. Tighten the screws.

NOTE: Do not put heavy objects on garage. Put the garage in storage when the temperature goes below 0°（32℉）

You can also check out the video at the link below for installing the Garage:

https://www.youtube.com/watch?v=2xCgf0EBlOA
